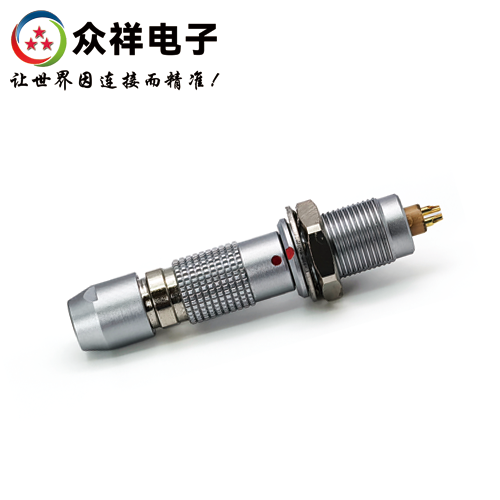

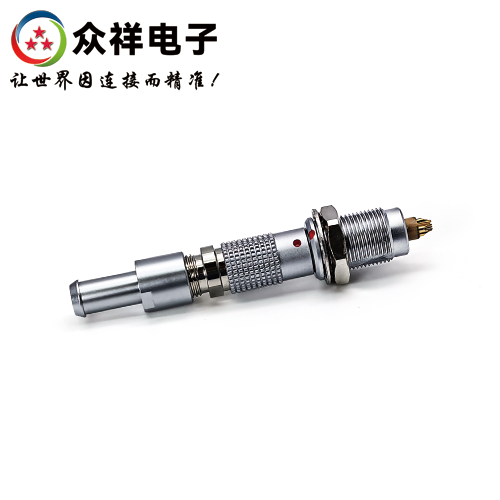

00B-Complete Set of Plugs and Sockets

The 00B Series Plug and Socket is a high-performance micro push-pull self-locking connector system, available in multiple configurations from 2 to 5 pins. It is suitable for diverse applications including medical, aerospace, and industrial sectors. Boasting efficient push-pull connection, reliable self-locking mechanism and comprehensive shielding performance, it serves as an ideal choice for high-reliability connections in space-constrained environments.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

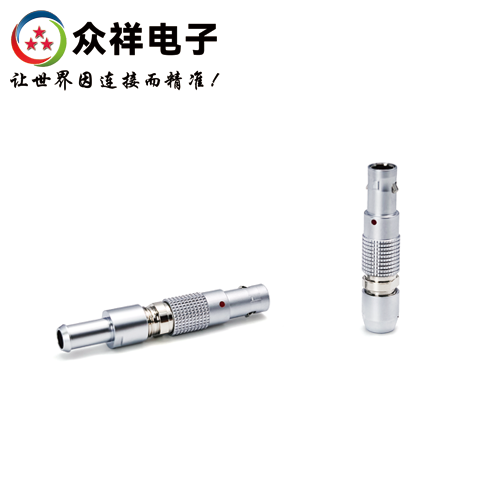

00B PlugB Series TGG straight plug, nut type or boot type. PN: TGG.00B.304.CLAD53Z. Indoor use, IP50, 2~5 contacts. Push-pull self-locking. Termination: solder, crimp, PCB mount. Equipped with keying pin (G / A····M). Cable secured by clamp or boot backshell.

00B ReceptacleB Series ZGG internal fixed receptacle. PN: ZGG.1B.304.CLL. Indoor use, IP50, 2~5 contacts. Push-pull self-locking. Termination: solder, crimp, PCB mount. Nut panel mounting, keying pin options (G / A...M & R), chassis internal installation.

Technical Features & Structure & Market Positioning (English Standard Version)

Core Features

Equipped with a fast push‑pull self‑locking system for easy operation and high‑speed connection;

Available in 2 to 32 contact configurations to meet a wide range of application requirements;

High‑density mounting design effectively saves installation space;

Standard G‑type keying pins ensure accurate and error‑proof connector mating.

Component Structure

Shell: Pure copper base with chrome plating, providing high mechanical strength and excellent corrosion resistance.

Contacts (Pins/Sockets): Pure copper material with gold plating, ensuring stable and consistent electrical conductivity.

Insulator: Injection‑molded high‑temperature engineering plastic with superior insulation performance and long‑term reliability.

Cable Boot: Flexible plastic molded structure that protects cables from external mechanical damage and bending stress.

Rear Metal Nut: Allows multi‑directional bending of wire harnesses, suitable for dynamic motion and flexible installation scenarios.

Strategic Positioning

Supported by a complete in‑house R&D, manufacturing and sales system, we deliver customized, high‑efficiency one‑stop electrical connection solutions for core industries including semiconductors, industrial automation, new energy equipment, humanoid robots, quadruped robots, bionic wolf robots, UAVs, and automotive manufacturing.
