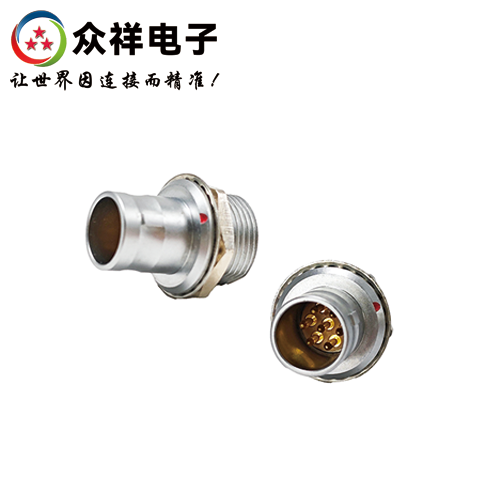

B-TAG Fixed Panel Mount Plug

Series B Fixed Plug is mounted on panels or chassis via nut fastening and can be used with floating receptacles. Equipped with push-pull self-locking structure and positioning design, it prevents misinsertion and loosening. Featuring a robust and durable construction, it is suitable for applications requiring reliable connections such as industrial automation and medical equipment.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

General Model: Series B | TAG Plug | Nut-Fixed PlugPart No.: TAG.1B.306.CLASeries Type: 0B, 1B, 2B, 3B, 4BApplication Environment: IndoorIP Rating: IP50Contact Count: 2–32 pinsMating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

Key Features

Quick push-pull self-locking system enables easy operation and efficient connection. Multi-contact options from 2 to 32 pins fully meet diverse application requirements. High-density mounting design greatly saves installation space. Equipped with standard Type G locating pins to ensure precise alignment of the connector.

Components

Housing: Copper base material with chrome plating, delivering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator: Injection-molded high-temperature engineering plastic with outstanding insulation properties. Strain relief: Molded flexible plastic, effectively protecting cables against external mechanical damage. Rear metal nut: Allows multi-directional bending of wire harnesses, suitable for dynamic working scenarios.

Strategic Positioning

Backed by our mature integrated R&D, production and sales system, we provide professional and efficient customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots (robot dogs, robot wolves), UAVs and automobile manufacturing.
