General Model: B Series | ZPG Socket | Right-angle PCB Mount SocketSpec. Model: ZXG.0B.304.HLNSeries Types: 00B, 0B, 1BMounting Method: Pin Soldering MountIP Rating: IP50Mating Method: Push-pull Self-lockingTermination Style: Solder, Crimp or PCB Mount

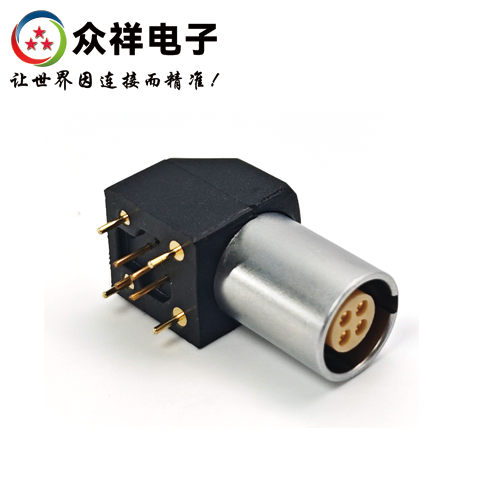

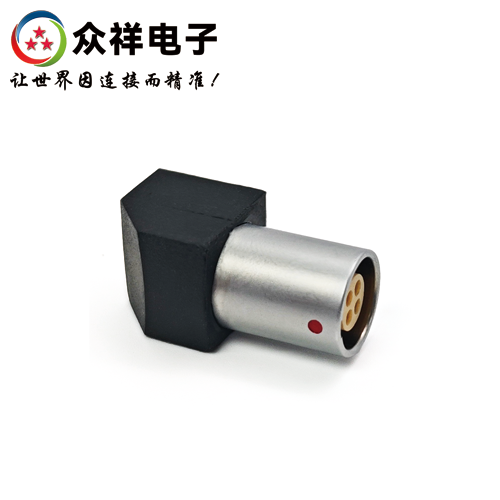

90° Right-angle Short Straight Pin PCB Mount SocketDescription: 90° right-angle socket for printed circuit boards, with locating pins (G) or locating pins (A…F) (solder or screw mounting).

Contact us to obtain the connector technical datasheet.

Key Features

Fast push-pull self-locking system enables easy operation and efficient connection. A wide range of contact options from 2 to 32 contacts fully meets diverse application requirements. High-density mounting design significantly saves installation space. Fitted with standard Type G locating pins to ensure precise connector alignment.

Component Composition

Shell: Copper base material with chrome plating, offering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating to ensure stable and reliable electrical conductivity. Insulator Insert: Injection-molded high-temperature engineering plastic with outstanding insulation properties. Cable Boot: Molded soft plastic, effectively protecting cables against external mechanical damage. Rear Metal Nut: Permits multi-directional bending of harnesses, suitable for dynamic working conditions.

Strategic Positioning

Backed by our mature full-value chain covering R&D, production and sales, we deliver professional, efficient customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, UAVs and automotive manufacturing.
