B-TNG Straight Plug with Release Pull Ring

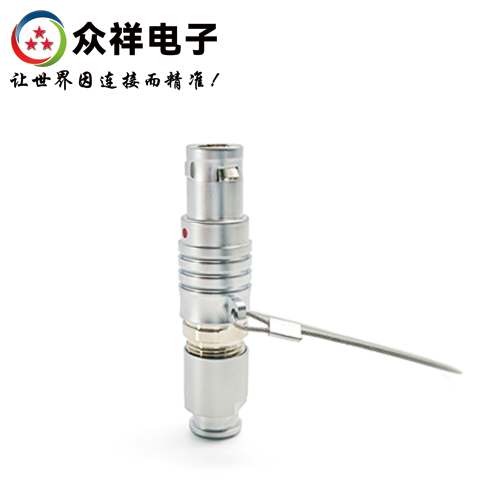

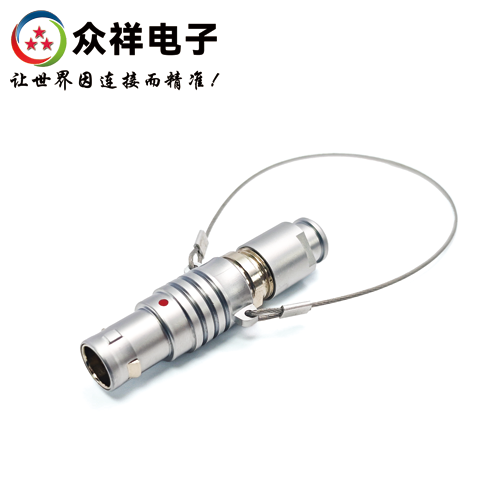

Series B Straight Plug with Release Pull Cord features push-pull self-locking design. Push in to achieve firm locking, and pull the matched cord for quick unlocking and disconnection; single-hand operation is available. It prevents accidental unplugging and fits space-limited applications with reliable connections, meeting connection requirements of various indoor devices.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

General Model: Series B | TNG Plug | Straight Plug with Release Pull CordPart No.: TNG.1B.306.CLAD53ZSeries Type: 0B, 1B, 2B, 3B, 4BApplication Environment: IndoorIP Rating: IP50Contact Count: 2–32 pinsMating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

Key Features

Quick push-pull self-locking system enables easy operation and efficient connection. Multi-contact options from 2 to 32 pins fully meet diverse application requirements. High-density mounting design greatly saves installation space. Equipped with standard Type G locating pins to ensure precise alignment of the connector.

Components

Housing: Copper base material with chrome plating, delivering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator: Injection-molded high-temperature engineering plastic with outstanding insulation properties. Strain relief: Molded flexible plastic, effectively protecting cables against external mechanical damage. Rear metal nut: Allows multi-directional bending of wire harnesses, suitable for dynamic working scenarios.

Strategic Positioning

Backed by our mature integrated R&D, production and sales system, we provide professional and efficient customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots (robot dogs, robot wolves), UAVs and automobile manufacturing.
