General Model: Series B | ZXG Receptacle | Right Angle Board-Mount Receptacle with Double NutsPart No.: ZXG.0B.304.HLNSeries Type: 00B, 0B, 1BMounting Method: Double Nut MountingIP Rating: IP50Mating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

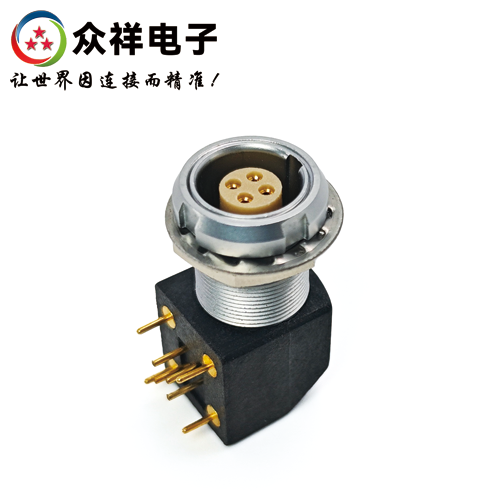

90° Right-Angle Short Straight Pin Board-Mount Receptacle (Double Nut Mounting)

Contact us to obtain the connector technical datasheet.

Key Features

Quick push-pull self-locking system for easy operation and efficient connection. Multi-contact versions ranging from 2 to 32 pins to meet diverse application requirements. High-density mounting design greatly saves installation space. Comes with standard type G locating pins to ensure precise connector alignment.

Components

Housing: Copper base with chrome plating, offering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating for stable and reliable electrical conductivity. Insulator: Injection-molded high-temperature engineering plastic with excellent insulation performance. Strain relief: Molded flexible plastic, effectively protecting cables from external mechanical damage. Rear metal nut: Allows multi-directional bending of cable harnesses, suitable for dynamic working conditions.

Strategic Positioning

Backed by our mature integrated R&D, production and sales system, we provide professional, efficient customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy devices, humanoid robots, quadruped robots (robot dogs, robot wolves), UAVs and automobile manufacturing.
