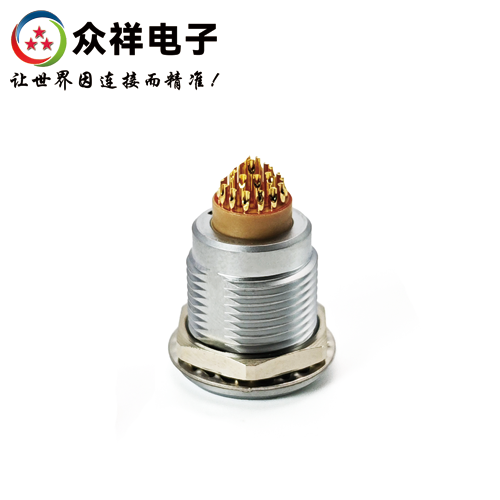

General Model: B Series | ZGG Receptacle | Internal Fixed Receptacle Part Number: ZGG.1B.306.CLL Series Code: 00B, 0B, 1B, 2B, 3B, 4B Application: Indoor IP Rating: IP50 Number of Contacts: 2~32 contacts Mating Method: Push-pull self-locking Termination Style: Solder, Crimp or PCB Mount Description: ZGG fixed receptacle with nut mounting; keying pin options (G) or (A...M & R), for chassis internal mounting.

Contact us to obtain the connector technical datasheet.

Core Features

Fast push-pull self-locking system enables easy operation and efficient connection. Multi-contact specifications ranging from 2 to 32 contacts to meet diverse application requirements. High-density mounting design greatly saves installation space. Standard G-type keying pins ensure precise alignment during connector mating.

Component Construction

Shell: Pure copper substrate with chrome plating, providing high mechanical strength and excellent corrosion resistance. Pins / Sockets: Pure copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator: Injection-molded high-temperature resistant engineering plastic with outstanding insulation performance. Cable Boot: Molded flexible plastic, effectively protecting cables from external mechanical damage. Rear Metal Nut: Allows multi-directional bending of wire harnesses to fit dynamic working conditions.

Strategic Positioning

Backed by our mature integrated R&D, manufacturing and sales system, we deliver professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, bionic wolf robots, UAVs and automotive manufacturing.
