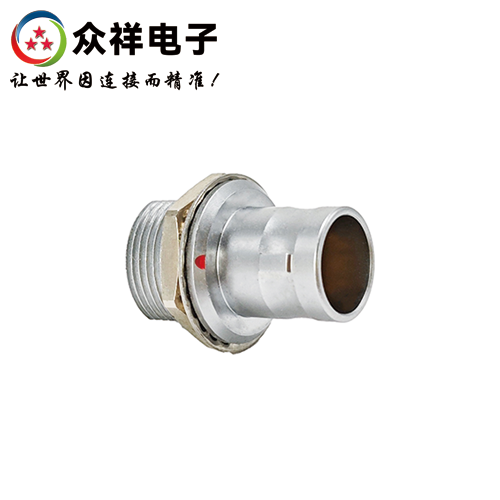

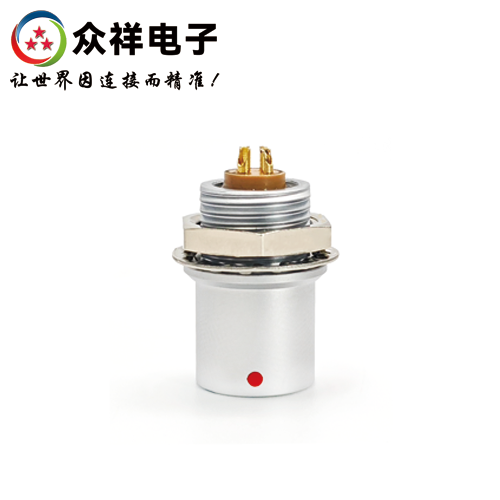

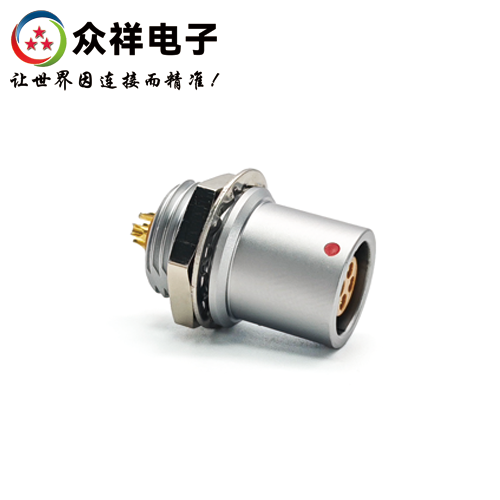

B-ZHG Protruding Receptacle

Series B Protruding Receptacle adopts single-nut rear-locking design with front protruding structure. It is compatible with Series B plugs to satisfy application demands in complex environments. Featuring push-pull self-locking and precise positioning, it has a sturdy structure and easy installation, suitable for scenarios requiring stable connections such as industrial control and medical equipment.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

General Model: Series B | ZHG Receptacle | Protruding Housing ReceptaclePart No.: ZHG.1B.306.CLLSeries Type: 00B, 0B, 1B, 2B, 3BApplication Environment: IndoorIP Rating: IP50Contact Count: 2–32 pinsMating Type: Push-Pull Self-Locking

Key Features

Quick push-pull self-locking system enables easy operation and efficient connection. Multi-contact options from 2 to 32 pins fully meet diverse application requirements. High-density mounting design greatly saves installation space. Equipped with standard Type G locating pins to ensure precise alignment of the connector.

Components

Housing: Copper base material with chrome plating, delivering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator: Injection-molded high-temperature engineering plastic with outstanding insulation properties. Strain relief: Molded flexible plastic, effectively protecting cables against external mechanical damage. Rear metal nut: Allows multi-directional bending of wire harnesses, suitable for dynamic working scenarios.

Strategic Positioning

Backed by our mature integrated R&D, production and sales system, we provide professional and efficient customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots (robot dogs, robot wolves), UAVs and automobile manufacturing.
