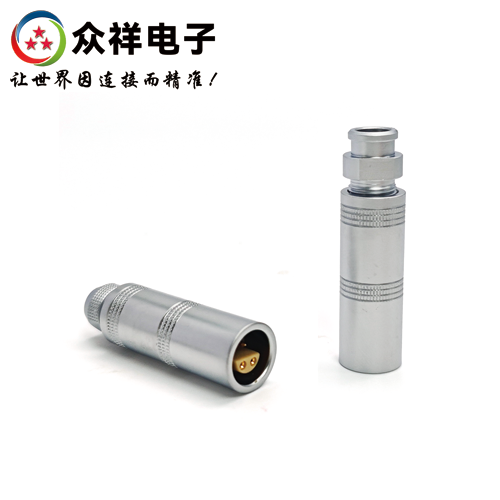

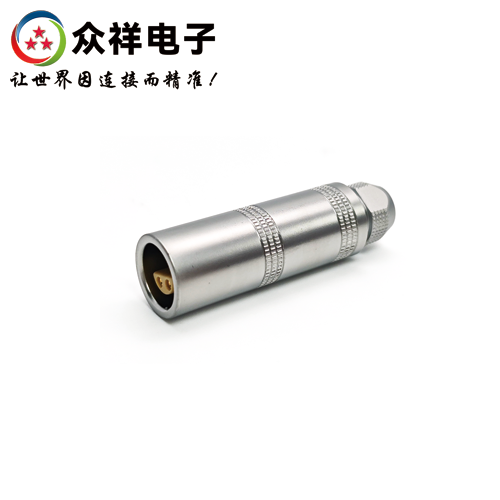

General Model: S Series | DCA Receptacle | Floating ReceptaclePart Number: DCA.1S.304.CLLD62ZAvailable Series: 00S, 0S, 1S, 2S, 3S, 4SApplication Environment: IndoorIP Rating: IP50Contact Count: 2~29 pinsMating Type: Push-pull self-lockingTermination Style: Solder, Crimp or PCB mount

Description: DCA floating receptacle, available with locating key (G) or key variants (A...M & R), cable solder type.

Contact us to obtain the connector technical datasheet.

Key Features

• High-density mounting design, greatly saving installation space.
• Quick push-pull self-locking system for easy operation and efficient connection.
• Adopts stepped (half-moon) insert equipped with both male and female contacts.
• Multi-contact options covering 2~32 pins to fully meet diverse application requirements.
• Standard G-type locating key to ensure precise connector alignment.

Components

• Housing: Pure brass substrate with chrome plating, delivering structural strength and corrosion resistance.
• Male & female contacts: Pure copper material with gold plating to guarantee stable and reliable electrical conductivity.
• Insulator insert: Injection-molded high-temperature engineering plastic with excellent insulation performance.
• Cable boot: Molded soft plastic to effectively protect cables from external mechanical damage.
• Rear metal nut: Enables multi-directional bending of wire harnesses for dynamic working scenarios.
