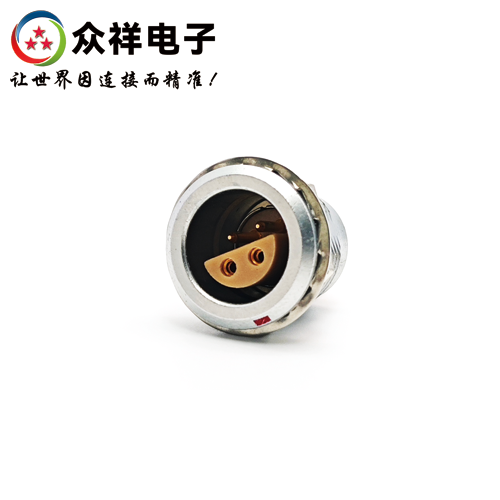

General Model: S Series | ZRA Receptacle | Panel Mount Receptacle Part No.: ZRA.1S.304.CLL Series Size: 00S, 0S, 1S, 2S, 3S, 4S Application Environment: Indoor Ingress Protection: IP50 Contact Count: 2–29 contacts Mating Method: Push-pull self-locking Termination: Soldering, Crimping or PCB Mount

Description: ZRA panel mount receptacle, nut mounting, locating keys (G) or (A…M and R), internal chassis mounting.

Contact us to obtain the connector technical datasheet.

Key Features

High-density mounting design greatly saves installation space. Fast push-pull self-locking system enables convenient operation and efficient connection. Adopts stepped (half-moon) inserts equipped with both male pin contacts and female socket contacts. Multi-contact specifications cover 2 to 32 contacts to fully meet diverse application requirements. Comes with standard type-G locating keys to ensure precise alignment of the connector.

Components

Shell: Brass substrate with chrome plating, delivering structural strength and corrosion resistance. Pins / Sockets: Solid brass with gold plating to guarantee stable and reliable electrical conductivity. Insulator Insert: Injection-molded high-temperature engineering plastic with excellent insulation performance. Rear Strain Relief: Molded soft plastic to effectively protect cables from external mechanical damage. Rear Metal Nut: Allows multi-directional bending of wiring harnesses and suits dynamic application scenarios.

Strategic Positioning

Backed by the company’s mature R&D, manufacturing and sales full-chain system, we provide professional, efficient, customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, drones and automotive manufacturing.
