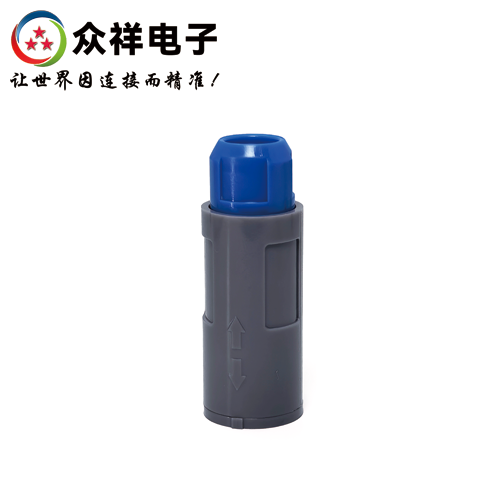

2P Plastic Floating Receptacle

Constructed of high-hardness plastic, it is robust yet lightweight and autoclavable. Featuring a push-pull self-locking mechanical design, it supports fast one-handed operation and delivers excellent resistance to vibration and cable pull. It addresses connection requirements for machine spacing or port transition. It is commonly used as an extension assembly with a floating receptacle on one end of the harness and a plug on the other end, or for signal transition and transmission where both ends of the harness connect to floating receptacles of different series. Widely adopted in medical, test & measurement and other equipment requiring high reliability and quick mating/unmating.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

General Model: P Series | PRG Socket | 2P Floating Receptacle Spec. Model: PRG.2P.307.GLLAD62Z Series Models: 0P, 1P, 2P, 3P Application Environment: Indoor Ingress Protection: IP50 Number of Contacts: 2–32 Mating Method: Push-pull self-locking Termination: Soldering, Crimping or PCB Mount

Description: PKG fixed receptacle, nut mounting, with locating pins (G) or (A...M and R), for chassis internal mounting.

Color Options | Keyway Options Housing Color: Grey, black and white available for the outer shell, well-matched with cables. Component Color: (Rear cap, nut, strain relief): Red, yellow, blue, green, orange, black, white, grey. Multiple colors for flexible combination.

Locating Feature: Single keyway and multi-keyway designs to prevent mis-mating. Multi-keyway versions are available in 40°, 60°, 80° keying angles.

Key Features

High-density mounting design greatly saves installation space. Fast push-pull self-locking system for convenient operation and efficient connection. Constructed of high-hardness plastic, robust yet lightweight, autoclavable. Multi-contact versions ranging from 2 to 32 contacts to fully meet diverse application requirements. Comes with standard G-type locating pins to ensure precise alignment of the connector.

Components

Housing: Copper base material with chrome plating, delivering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator Insert: Injection-molded high-temperature engineering plastic with excellent insulation performance. Rear Strain Relief: Molded soft plastic, effectively protecting cables against external mechanical damage. Rear Metal Nut: Allows multi-directional bending of wiring harnesses, suitable for dynamic application scenarios.

Strategic Positioning

Backed by the company’s mature R&D, manufacturing and sales full-chain system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, unmanned aerial vehicles and automotive manufacturing.
