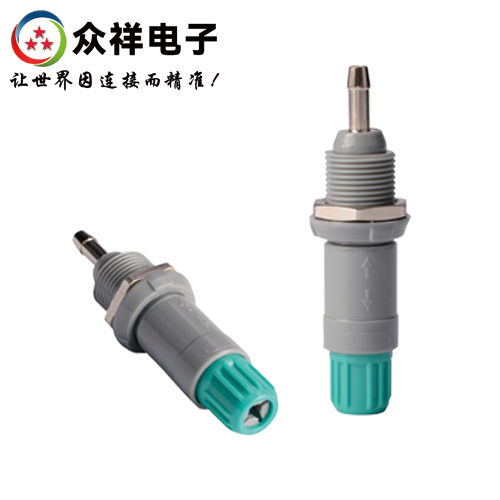

1P Plastic Jet Complete Plug & Receptacle

Series 1P Jet (Pneumatic) Complete Plug & Receptacle Set is constructed from high-hardness plastic, sturdy and lightweight, capable of withstanding steam sterilization. Adopting push-pull self-locking mechanical design, it enables quick one-hand operation with resistance to vibration and pulling. This connector is specially designed for liquid or gas transmission, widely applied in medical, test & measurement and other equipment requiring high reliability and fast mating/unmating.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

Plug

General Model: P Series | PAG Plug | 1P Jet Straight PlugPart No.: PAG.1P.301.GLAD62Series Size: 0P,1P,2P,3PApplication Environment: IndoorProtection Class: IP50Contact Count: 2–32 pinsMating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

Description:PAG straight plug, locating pin (G) or locating keys (A····M), with cable clamp and boot-style back cover.

Color Options | Keying Options

Housing Color: Grey, black and white available for harmonious matching with cables. Component Color: (Back cover, nut, boot): Red, yellow, blue, green, orange, black, white, grey. Multiple colors for flexible combination. Keying System: Single key and multi-key configurations to prevent mismating. Multi-key versions are available in 40°, 60°, 80° keying angles.

Receptacle

General Model: P Series | PKG Receptacle | 1P Jet Fixed ReceptaclePart No.: PKG.1P.301.GLLSeries Size: 0P,1P,2P,3PApplication Environment: IndoorProtection Class: IP50Contact Count: 2–32 pinsMating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

Description:PKG fixed receptacle, nut mounting, locating pin (G) or locating keys (A...M and R), chassis mounting.

Key Features

Metal insert sleeve of plug and multi-sealing ring design maintain waterproof performance. Quick push-pull self-locking system enables easy operation and efficient connection. Multi-contact specifications cover 2 to 32 pins to fully meet diverse application requirements. High-density mounting design greatly saves installation space. Equipped with standard Type G locating pins to ensure precise alignment of connectors.

Components

Housing: Pure copper base with chrome plating, combining structural strength and corrosion resistance. Pins / Sockets: Pure copper material with gold plating to guarantee stable and reliable electrical conductivity. Sealing ring material: Silicone rubber with excellent weather resistance and anti-aging performance. Insulator: Injection-molded high-temperature engineering plastic with outstanding insulation properties. Strain relief: Molded flexible plastic, effectively protecting cables from external mechanical damage. Rear metal nut: Allows multi-directional bending of wire harnesses, suitable for dynamic working scenarios.
