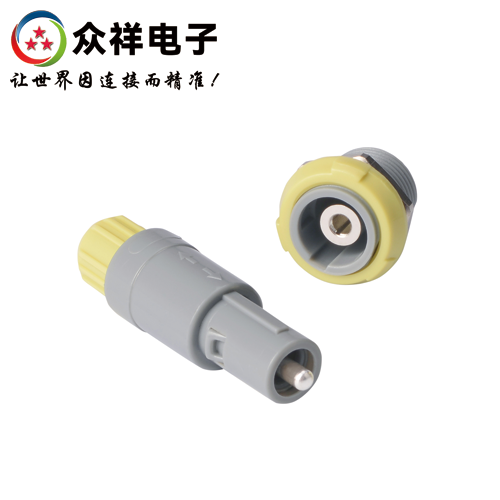

General Model: P Series | PKG Receptacle | 1P Fixed ReceptaclePart No.: PKG.1P.304.GLLSeries Size: 0P,1P,2P,3PApplication Environment: IndoorProtection Class: IP50Contact Count: 2–32 pinsMating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

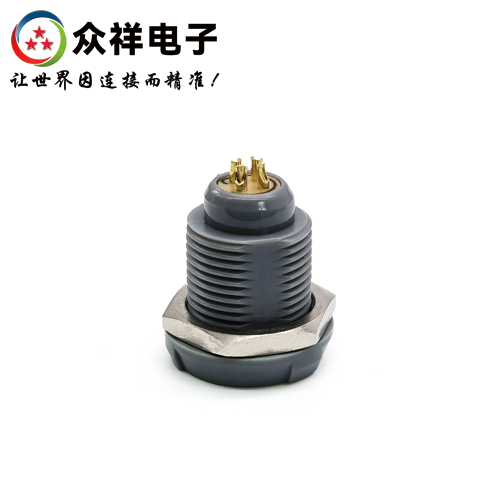

Description:PKG fixed receptacle, nut mounting, locating pin (G) or locating keys (A...M and R), chassis mounting.

Color Options | Keying Options

Housing Color: Grey, black and white available for harmonious matching with cables. Component Color: (Back cover, nut, boot): Red, yellow, blue, green, orange, black, white, grey. Multiple colors for flexible combination. Keying System: Single key and multi-key configurations to prevent mismating. Multi-key versions are available in 40°, 60°, 80° keying angles.

Contact us to obtain the connector technical datasheet.

Key Features

High-density mounting design greatly saves installation space; Fast push-pull self-locking system enables easy operation and efficient connection; Constructed from high-hardness plastic, robust and lightweight, capable of withstanding steam sterilization; Multi-contact specifications cover 2–32 pins to fully meet diverse application requirements; Equipped with standard Type G locating pins to ensure precise connector alignment.

Components

Housing: Copper base with chrome plating, delivering structural strength and corrosion resistance; Pins / Sockets: Copper material with gold plating to guarantee stable and reliable electrical conductivity; Insulator core: Injection-molded high-temperature engineering plastic with excellent insulation performance; Rear boot: Injection-molded flexible plastic, effectively protecting cables from external mechanical damage; Rear metal nut: Allows multi-directional bending of wiring harnesses, suitable for dynamic application scenarios.

Strategic Positioning

Backed by our mature integrated R&D, production and sales system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, UAVs and automobile manufacturing.
