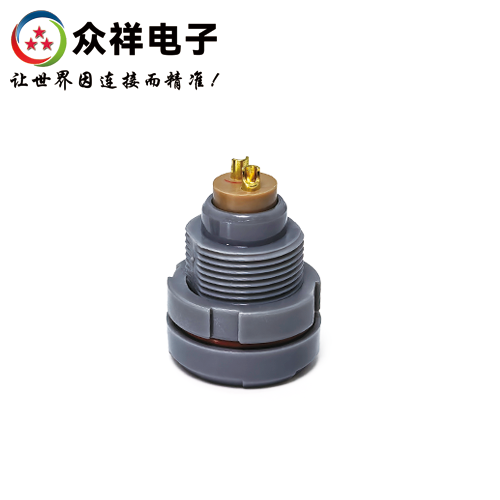

General Model: P Series | PKG Socket | 2P Fixed SocketSpec. Model: PKG.2P.304.GLLSeries Models: 0P, 1P, 2P, 3PApplication Environment: IndoorIngress Protection: IP50Number of Contacts: 2–32Mating Method: Push-pull self-lockingTermination: Soldering, Crimping or PCB Mount

Description:PKG fixed socket, nut mounting, with locating pins (G) or (A...M and R), for chassis internal mounting.

Color Options | Keyway OptionsHousing Color: Grey, black and white available for the outer shell, well-matched with cables. Component Color: (Rear cap, nut, strain relief): Red, yellow, blue, green, orange, black, white, grey. Multiple colors for flexible combination.

Locating Feature: Single keyway and multi-keyway designs to prevent mis-mating. Multi-keyway versions are available in 40°, 60°, 80° keying angles.

Contact us to obtain the connector technical datasheet.

Key Features

High-density mounting design greatly saves installation space. Fast push-pull self-locking system for convenient operation and efficient connection. Constructed of high-hardness plastic, robust yet lightweight, autoclavable. Multi-contact versions ranging from 2 to 32 contacts to fully meet diverse application requirements. Comes with standard G-type locating pins to ensure precise alignment of the connector.

Components

Housing: Copper base material with chrome plating, delivering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator Insert: Injection-molded high-temperature engineering plastic with excellent insulation performance. Rear Strain Relief: Molded soft plastic, effectively protecting cables against external mechanical damage. Rear Metal Nut: Allows multi-directional bending of wiring harnesses, suitable for dynamic application scenarios.

Strategic Positioning

Backed by the company’s mature R&D, manufacturing and sales full-chain system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, unmanned aerial vehicles and automotive manufacturing.
