1P Plastic Keying Angle Differentiation

Color Options | Keying Options

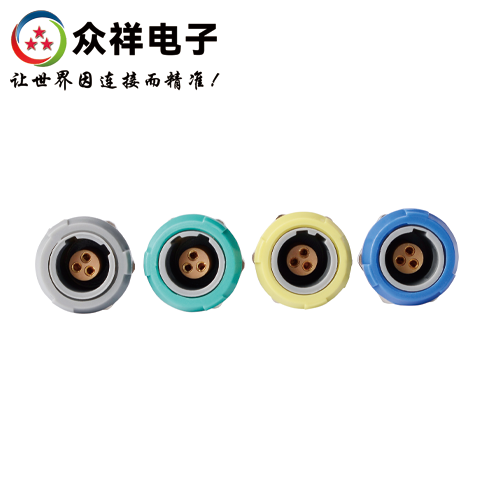

Housing Color: Grey, black and white are available for better matching with cables. Component Color: (Back cover, nut, boot): Red, yellow, blue, green, orange, black, white, grey. Multiple colors for flexible combination. Keying System: Single key and multi-key configurations are adopted to realize anti-mismating function. Multi-key versions are differentiated by 40°, 60°, and 80° keying angles.

Online Consulting

File Download

Related Parameters

Technical Data

Key Features

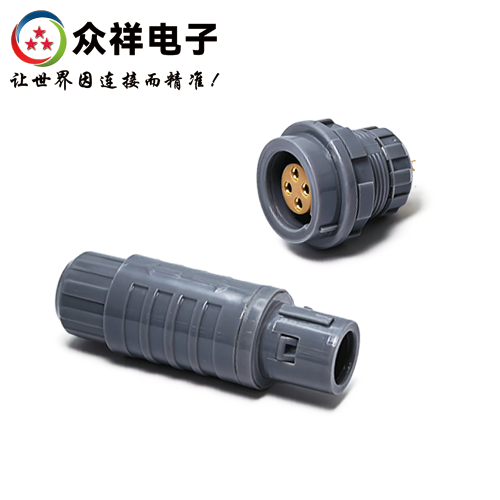

Metal insert sleeve of plug and multi-sealing ring design maintain waterproof performance. Quick push-pull self-locking system enables easy operation and efficient connection. Multi-contact specifications cover 2 to 32 pins to fully meet diverse application requirements. High-density mounting design greatly saves installation space. Equipped with standard Type G locating pins to ensure precise alignment of connectors.

Components

Housing: Pure copper base with chrome plating, combining structural strength and corrosion resistance. Pins / Sockets: Pure copper material with gold plating to guarantee stable and reliable electrical conductivity. Sealing ring material: Silicone rubber with excellent weather resistance and anti-aging performance. Insulator: Injection-molded high-temperature engineering plastic with outstanding insulation properties. Strain relief: Molded flexible plastic, effectively protecting cables from external mechanical damage. Rear metal nut: Allows multi-directional bending of wire harnesses, suitable for dynamic working scenarios.

Strategic Positioning

Backed by our mature integrated R&D, production and sales system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, UAVs and automobile manufacturing.
