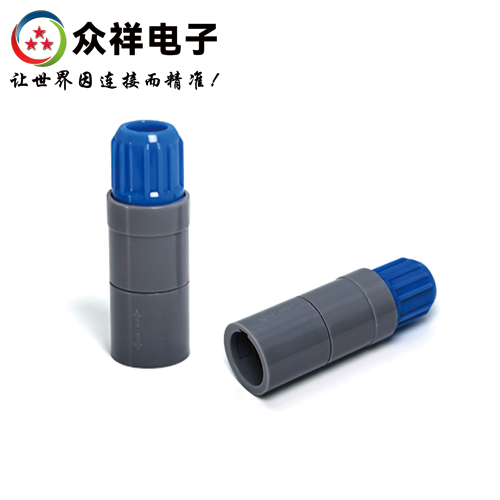

1P Plastic Floating Receptacle

Series 1P floating receptacle is made of high-hardness plastic, sturdy and lightweight, capable of withstanding steam sterilization. Adopting push-pull self-locking mechanical design, it supports quick one-hand operation with resistance to vibration and pulling. It addresses connection requirements for machine spacing or port transition. It is commonly used for extension connections with a floating receptacle on one end of the harness and a plug on the other, or for signal transmission by terminating both ends of the harness with floating receptacles of different series. It is widely applied in medical, test & measurement and other equipment requiring high reliability and fast mating/unmating.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

General Model: P Series | PRG Receptacle | 1P Floating ReceptaclePart No.: PRG.1P.307.GLLAD62ZSeries Size: 0P,1P,2P,3PApplication Environment: IndoorProtection Class: IP50Contact Count: 2–32 pinsMating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

Description:PRG floating receptacle, nut mounting, locating pin (G) or locating keys (A...M and R), chassis mounting.

Key Features

High-density mounting design greatly saves installation space; Fast push-pull self-locking system enables easy operation and efficient connection; Constructed from high-hardness plastic, robust and lightweight, capable of withstanding steam sterilization; Multi-contact specifications cover 2–32 pins to fully meet diverse application requirements; Equipped with standard Type G locating pins to ensure precise connector alignment.

Components

Housing: Copper base with chrome plating, delivering structural strength and corrosion resistance; Pins / Sockets: Copper material with gold plating to guarantee stable and reliable electrical conductivity; Insulator core: Injection-molded high-temperature engineering plastic with excellent insulation performance; Rear boot: Injection-molded flexible plastic, effectively protecting cables from external mechanical damage; Rear metal nut: Allows multi-directional bending of wiring harnesses, suitable for dynamic application scenarios.

Strategic Positioning

Backed by our mature integrated R&D, production and sales system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, UAVs and automobile manufacturing.
