General Model: Series K | ZGG Waterproof Receptacle | Rear-Mount ReceptaclePart No.: ZGG.1K.306.CLLSeries Type: 0K, 1K, 2K, 3K, 4KWaterproof Rating: IP67 as standard, IP68 available for special modelsApplication Environment: OutdoorContact Count: 2–26 pinsMating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

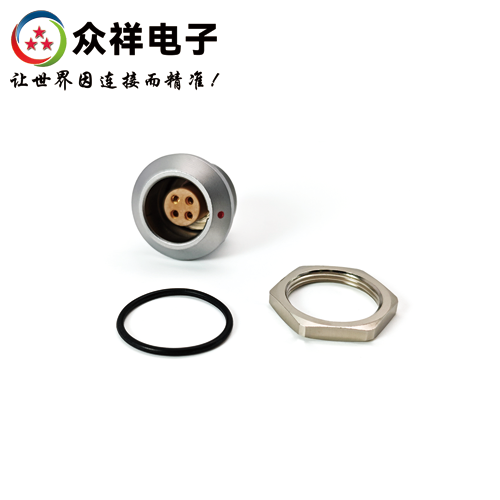

Description:Single-nut rear-lock receptacle with dual waterproof seals, locating pins (G) or locating pins (A, F, L and R).

K series adopts metal insert sleeve and double sealing ring design. With the push-pull self-locking system, when K series plug mates with receptacle, the metal insert sleeve closely fits the sealing rings, and the contact pressure effectively prevents water ingress.

Contact us to obtain the connector technical datasheet.

Key Features

Metal insert sleeve of plug and multi-sealing ring design maintain waterproof performance. Quick push-pull self-locking system enables easy operation and efficient connection. Multi-contact specifications cover 2 to 32 pins to fully meet diverse application requirements. High-density mounting design greatly saves installation space. Equipped with standard Type G locating pins to ensure precise alignment of connectors.

Components

Housing: Pure copper base with chrome plating, combining structural strength and corrosion resistance. Pins / Sockets: Pure copper material with gold plating to guarantee stable and reliable electrical conductivity. Sealing ring material: Silicone rubber with excellent weather resistance and anti-aging performance. Insulator: Injection-molded high-temperature engineering plastic with outstanding insulation properties. Strain relief: Molded flexible plastic, effectively protecting cables from external mechanical damage. Rear metal nut: Allows multi-directional bending of wire harnesses, suitable for dynamic working scenarios.
