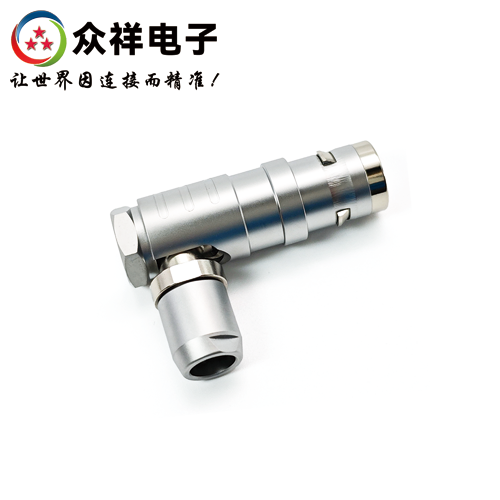

General Model: Series K | THG Waterproof Plug | Angled PlugPart No.: THG.1K.306.CLAC62Series Type: 0K, 1K, 2K, 3K, 4KWaterproof Rating: IP67 as standard, IP68 available for special modelsApplication Environment: OutdoorContact Count: 2–26 pinsMating Type: Push-Pull Self-LockingTermination: Solder, Crimp or PCB Connection

Description:Angled plug, with locating pins (G) or locating pins (A, F, L and R), cable clamp.

K series features metal insert sleeve and double sealing ring design. With the push-pull self-locking system, when K series plugs and sockets are mated, the metal insert sleeve closely fits the sealing rings, and the contact pressure effectively prevents water ingress.

Contact us to obtain the connector technical datasheet.

Key Features

Metal insert sleeve of plug and multi-sealing ring design maintain waterproof performance. Quick push-pull self-locking system enables easy operation and efficient connection. Multi-contact specifications cover 2 to 32 pins to fully meet diverse application requirements. High-density mounting design greatly saves installation space. Equipped with standard Type G locating pins to ensure precise alignment of connectors.

Components

Housing: Pure copper base with chrome plating, combining structural strength and corrosion resistance. Pins / Sockets: Pure copper material with gold plating to guarantee stable and reliable electrical conductivity. Sealing ring material: Silicone rubber with excellent weather resistance and anti-aging performance. Insulator: Injection-molded high-temperature engineering plastic with outstanding insulation properties. Strain relief: Molded flexible plastic, effectively protecting cables from external mechanical damage. Rear metal nut: Allows multi-directional bending of wire harnesses, suitable for dynamic working scenarios.

Strategic Positioning

Backed by our mature integrated R&D, production and sales system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, UAVs and automobile manufacturing.
