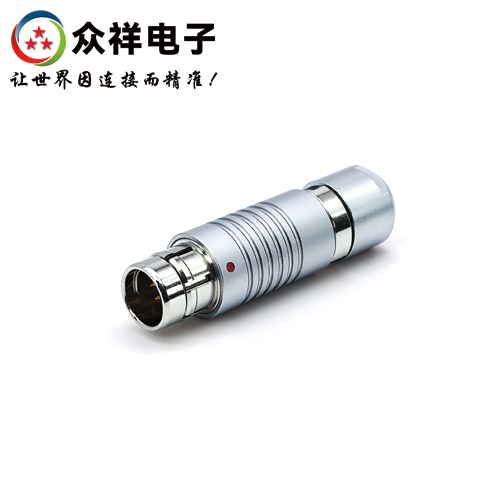

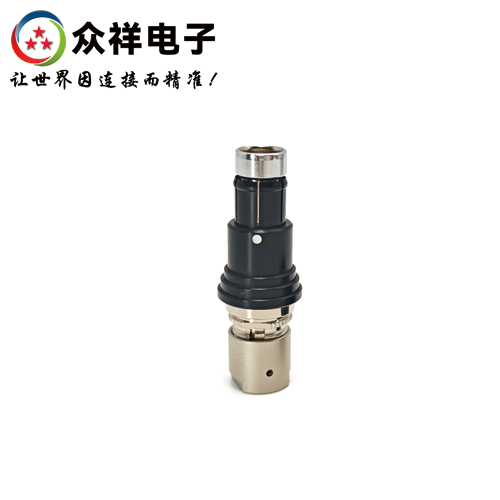

General Model: F Series | TLG Plug | Short Straight Plug Spec. Model: TLG.104F.306.CLAD82-H Series Models: 0F=102F | 1F=103F | 1.5F=1031F | 2F=104F | 3F=105F Application Environment: Indoor / Outdoor Ingress Protection: IP58 Number of Contacts: 2–29 Mating Method: Push-pull self-locking Termination: Soldering, Crimping or PCB Mount

Description: TLG short straight plug (black chrome plated), available in nut version and strain relief version, with locating pins (G) or (A...M and R).

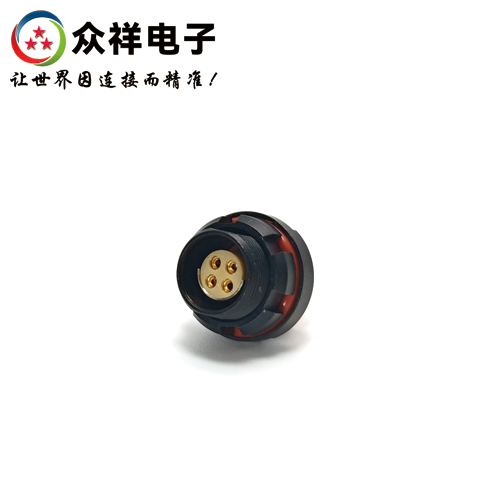

General Model: F Series | ZLG Receptacle | Short Receptacle Spec. Model: ZLG.1.5F.310.CLL-H Series Models: 0F=102F | 1F=103F | 1.5F=1031F | 2F=104F | 3F=105F Application Environment: Indoor / Outdoor Ingress Protection: IP58 Number of Contacts: 2–29 Mating Method: Push-pull self-locking Termination: Soldering, Crimping or PCB Mount

Description: ZLG short receptacle (black chrome plated), available in nut version and strain relief version, with locating pins (G) or (A...M and R).

Contact us to obtain the connector technical datasheet.

Key Features

High-density mounting design greatly saves installation space. Precision mechanical dimensions with split push-pull self-locking system. Fast push-pull self-locking system for convenient operation and efficient connection. Multi-contact versions ranging from 2 to 32 contacts to fully meet diverse application requirements. Comes with standard G-type locating pins to ensure precise alignment of the connector.

Components

Housing: Copper base material with chrome plating, delivering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator Insert: Injection-molded high-temperature engineering plastic with excellent insulation performance. Rear Strain Relief: Molded soft plastic, effectively protecting cables against external mechanical damage. Rear Metal Nut: Allows multi-directional bending of wiring harnesses, suitable for dynamic application scenarios.

Strategic Positioning

Backed by the company’s mature R&D, manufacturing and sales full-chain system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, unmanned aerial vehicles and automotive manufacturing.
