General Model: F Series | ZLG Receptacle | Short Receptacle Spec. Model: ZLG.1.5F.310.CLL Series Models: 0F=102F | 1F=103F | 1.5F=1031F | 2F=104F | 3F=105F Application Environment: Indoor / Outdoor Ingress Protection: IP58 Number of Contacts: 2–29 Mating Method: Push-pull self-locking Termination: Soldering, Crimping or PCB Mount

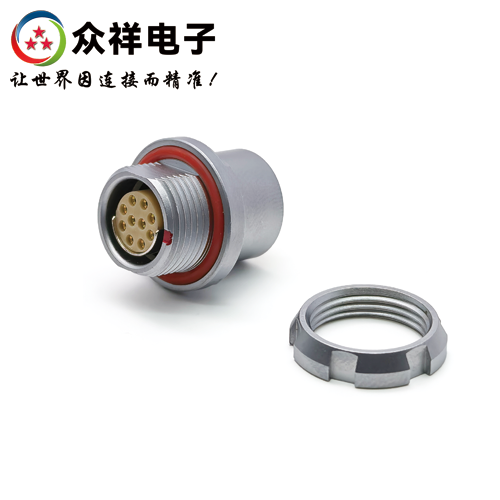

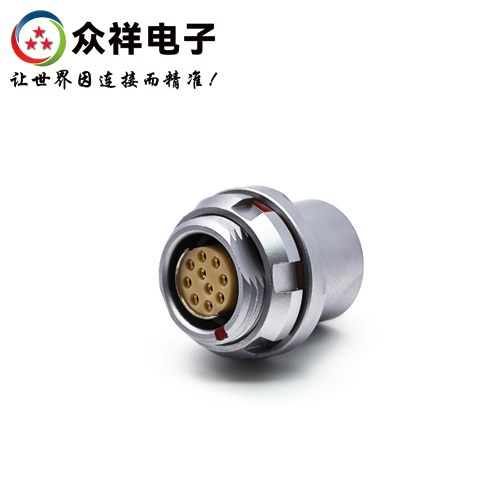

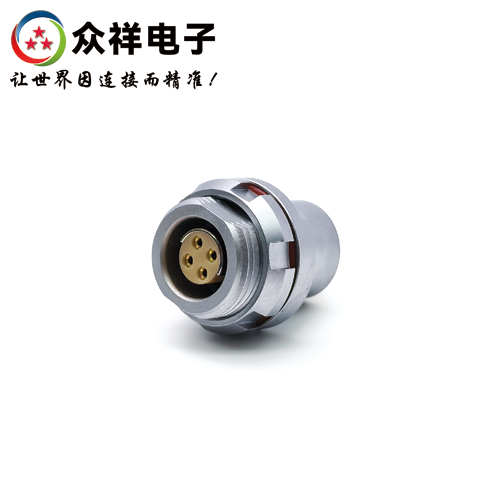

Description: ZLG short receptacle, available in nut version and strain relief version, with locating pins (G) or (A...M and R).

Contact us to obtain the connector technical datasheet.

Key Features

High-density mounting design greatly saves installation space. Precision mechanical dimensions with split push-pull self-locking system. Fast push-pull self-locking system for convenient operation and efficient connection. Multi-contact versions ranging from 2 to 32 contacts to fully meet diverse application requirements. Comes with standard G-type locating pins to ensure precise alignment of the connector.

Components

Housing: Copper base material with chrome plating, delivering structural strength and corrosion resistance. Pins / Sockets: Solid copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator Insert: Injection-molded high-temperature engineering plastic with excellent insulation performance. Rear Strain Relief: Molded soft plastic, effectively protecting cables against external mechanical damage. Rear Metal Nut: Allows multi-directional bending of wiring harnesses, suitable for dynamic application scenarios.

Strategic Positioning

Backed by the company’s mature R&D, manufacturing and sales full-chain system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, unmanned aerial vehicles and automotive manufacturing.
