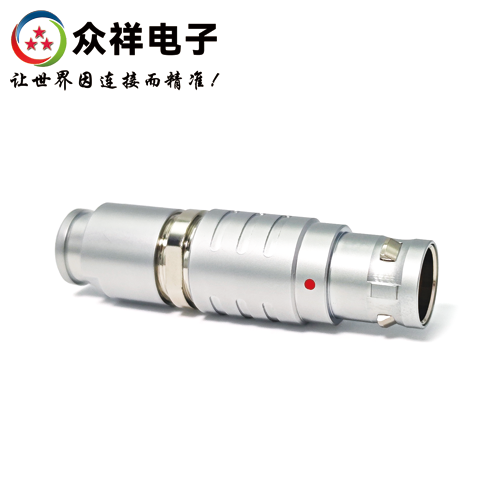

B-TGG Straight Plug

The B-series straight plug is a straight circular connector adopting push-pull self-locking design, enabling easy mating and unmating with anti-unplug protection. It features full shielding performance to resist electromagnetic interference, suitable for indoor precision equipment applications. With compact structure and flexible mounting, it reliably meets various signal and power transmission requirements, serving as a dependable interconnect component for a wide range of instruments and equipment.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

General Model: B Series | TGG Plug | Straight Plug, Nut Type / Boot Type Part Number: TGG.1B.306.CLAD53Z Series Code: 00B, 0B, 1B, 2B, 3B, 4B Application: Indoor IP Rating: IP50 Number of Contacts: 2~32 contacts Mating Method: Push-pull self-locking Termination Style: Solder, Crimp or PCB Mount Description: Straight plug with keying pin (G) or keying pin (A····M). Cable retention via cable clamp and boot-style backshell.

Core Features

Fast push-pull self-locking system for easy operation and efficient connection. Multi-contact specifications from 2 to 32 contacts to satisfy diverse application requirements. High-density mounting design greatly saves installation space. Standard G-type keying pins ensure precise alignment of connectors.

Component Construction

Shell: Pure copper base with chrome plating, offering mechanical strength and corrosion resistance. Pins / Sockets: Pure copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator: Injection-molded high-temperature engineering plastic with excellent insulation performance. Cable Boot: Molded flexible plastic, effectively protecting cables from external mechanical damage. Rear Metal Nut: Allows multi-directional bending of harnesses, suitable for dynamic application scenarios.

Strategic Positioning

Backed by our mature integrated R&D, manufacturing and sales system, we provide professional, efficient and customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, bionic wolf robots, UAVs and automotive manufacturing.
