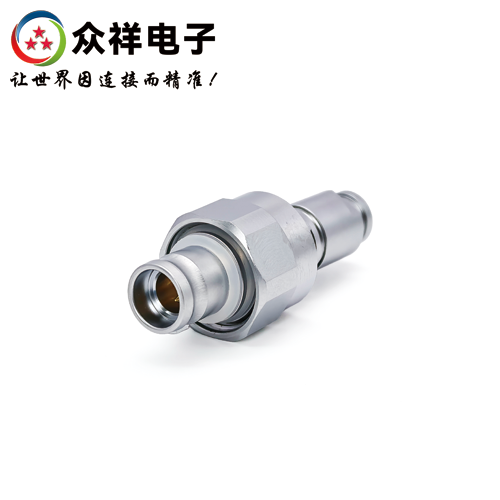

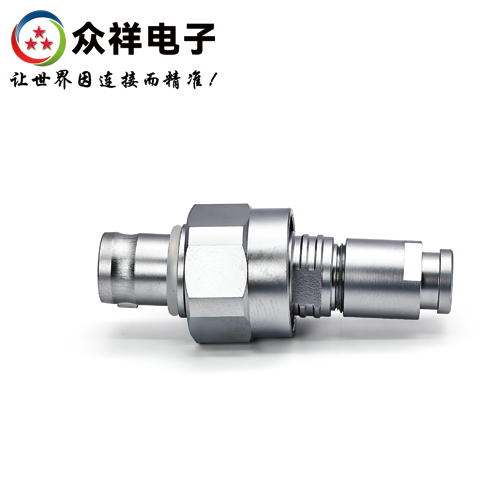

General Model: W Series | TGG Waterproof Plug | Straight Plug Model Specification: TGG.1T.304.CLLD62Z Series Codes: 0W,1W,2W,3W,4W Ingress Protection: IP68 Application Site: Outdoor Number of Contacts: 2–26 pins Mating Method: Push-pull self-locking Termination Method: Soldering, Crimping or PCB Mount Description: Straight plug, with locating pin (G) or locating pins (A..F, L and R), cable clamp

Contact us to obtain the connector technical datasheet.

Key Features

Metal insert sleeve of the plug and multi-seal ring design maintain waterproof performance. Quick push-pull self-locking system enables easy operation and efficient connection. Multi-contact options ranging from 2 to 32 pins fully meet diverse application requirements. High-density mounting design greatly saves installation space. Standard G-type locating pin configuration ensures precise alignment of connectors.

Components

Housing: Pure copper substrate with chrome plating, delivering structural strength and corrosion resistance. Contacts (pins & sockets): Pure copper with gold plating to guarantee stable and reliable electrical conductivity. Seal ring material: Silicone rubber, featuring excellent weather resistance and anti-aging properties. Insulator insert: Injection-molded high-temperature engineering plastic with outstanding insulation performance. Strain relief boot: Soft plastic injection molding, effectively protecting cables from external mechanical damage. Rear metal nut: Allows multi-directional bending of wire harnesses for dynamic application scenarios.

Strategic Positioning

Backed by the company’s mature R&D, production and sales full-chain system, we provide professional and efficient customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, unmanned aerial vehicles and automotive manufacturing.
