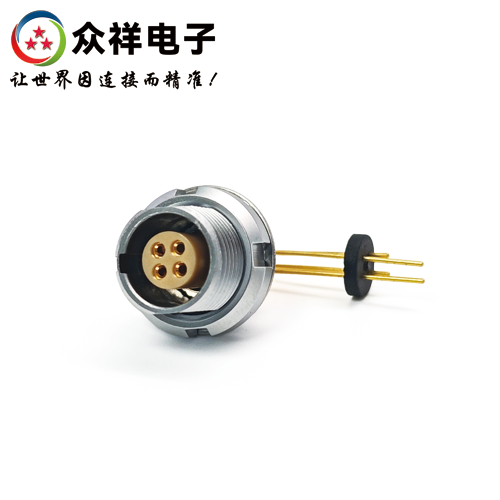

General Model: T Series | HEG Waterproof Receptacle | Long Bent Pin ReceptaclePart Number: HEG.1T.304.CLLAvailable Series: 0T,1T,2TIP Rating: IP68Application Environment: OutdoorContact Count: 2~26 contactsMating Type: Push-pull self-lockingTermination Style: Solder, Crimp or PCB mount

Description: Single nut front mounting, long bent pin for PCB soldering, available with locating key (G) or key variants (A..F, L & R).

Difference between T-series and K-series: T-series is more compact, similar in size to B-series. It delivers superior dust and water resistance, achieving IP68 rating once plug and receptacle are fully mated.

Contact us to obtain the connector technical datasheet.

Key Features

• Metal insert sleeve on plug and multi-seal ring design to maintain waterproof performance.
• Quick push-pull self-locking system for easy operation and efficient connection.
• Multi-contact options covering 2~32 pins to fully meet diverse application requirements.
• High-density mounting design, greatly saving installation space.
• Standard G-type locating key to ensure precise connector alignment.

Components

• Housing: Pure brass substrate with chrome plating, delivering structural strength and corrosion resistance.
• Male & female contacts: Pure copper material with gold plating to guarantee stable and reliable electrical conductivity.
• Seal ring: Made of silicone rubber, featuring excellent weather resistance and anti-aging properties.
• Insulator insert: Injection-molded high-temperature engineering plastic with excellent insulation performance.
• Cable boot: Molded soft plastic to effectively protect cables from external mechanical damage.
• Rear metal nut: Enables multi-directional bending of wire harnesses for dynamic working scenarios.

Strategic Positioning

Backed by our mature full-chain system of R&D, manufacturing and sales, we provide professional, efficient customized one-stop electrical interconnection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, unmanned aerial vehicles, and automotive manufacturing.
