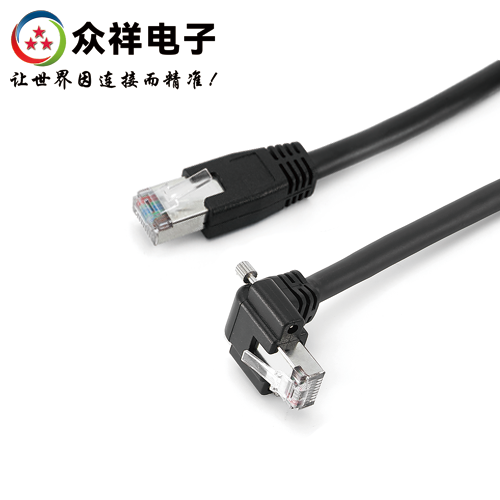

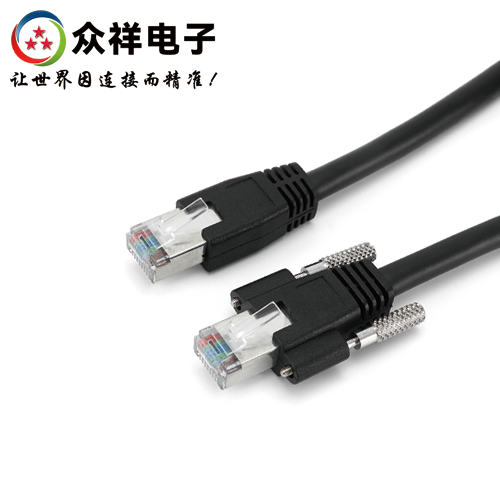

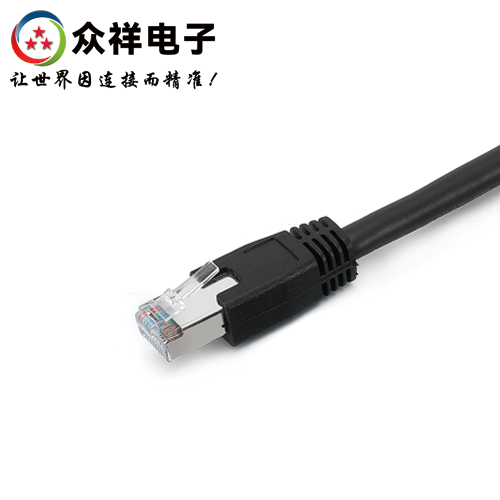

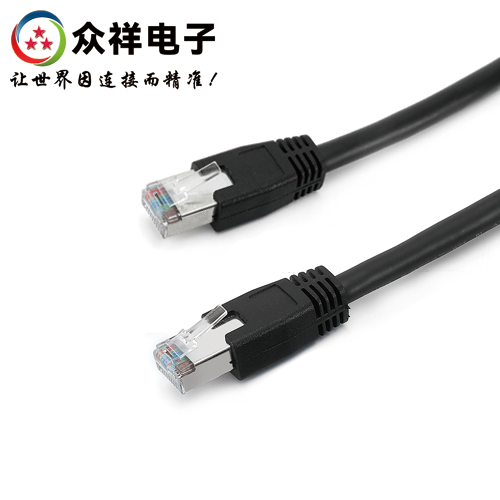

Flat Port - Industrial Grade Ethernet Cable

Flat-molded Ethernet cable, equipped with drag chain harness and static harness. The industrial-grade crystal connector adopts high-strength housing and gold-plated brass contacts, delivering robust and stable transmission for industrial environments. The drag-chain-rated Ethernet cable is designed for dynamic applications, featuring multi-strand fine copper conductors for bending resistance and anti-fatigue performance; the static Ethernet cable is cost-effective and stable to meet requirements in relatively stationary environments.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

General Model: Industrial Grade Ethernet Cable | Drag Chain / Static | Flat-molded Application Environment: Indoor IP Rating: IP50 Locking Method: Spring clip lock / Screw lock Termination: Crimping with crystal connector gasket

Description: Flat-molded type, standard molded crystal connector version

Key Features

Multiple injection molds: integrated molding processes including horizontal locking, flat port, straight head, etc. Reliable anti-interference performance: double shielding with aluminum foil and tinned copper wire isolates industrial electromagnetic and RF interference to ensure stable transmission. Excellent environmental adaptability: drag-chain version with PUR/TPE jacket resists oil and extreme temperatures; static version with PVC jacket meets basic flame retardant and moisture-proof requirements. Durable structure: the drag-chain cable has built-in strength member to withstand repeated bending; the static cable features solid conductors for low aging risk during long-term fixed installation. Flexible installation: the flexible drag-chain cable fits dynamic movement of equipment; the static cable has moderate hardness. Stable transmission: high-purity copper conductors paired with premium insulation reduce signal attenuation and ensure reliable communication.

Component Composition

Cable conductors: high-purity oxygen-free copper. The drag-chain type uses multi-strand ultra-fine copper wires, while the static type uses thick-strand copper wires. Insulation jacket: drag-chain type PUR/TPE jacket, oil resistant and wide temperature resistant; static type PVC jacket for basic flame retardancy and moisture resistance. Shielding layer: drag-chain type optional aluminum foil plus tinned copper braid; static type optional single aluminum foil shielding. Inner layers: optional tensile cotton yarn, filler cotton yarn, individual shielded wires and other selections.

Typical Application Fields

Industrial Vision: signal connection for industrial cameras, machine vision systems and other equipment, suitable for compact installation requirements of automated production lines. Industrial Automation: signal transmission for industrial robots, CNC machine tools, AGVs and other equipment. The drag-chain type serves moving components, and the static type is used for fixed wiring inside control cabinets. Intelligent Manufacturing: wiring for automated production lines, sorting equipment and intelligent warehousing systems. The double-shielded design guarantees smooth communication between devices. Industrial Facilities & Instruments: fixed wiring for factory network backbones, surveillance cameras, precision test instruments, and node connections for industrial control systems.

Strategic Positioning

Leveraging the company’s mature R&D, manufacturing and sales full-chain system, we provide professional, efficient customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, unmanned aerial vehicles and automobile manufacturing.
