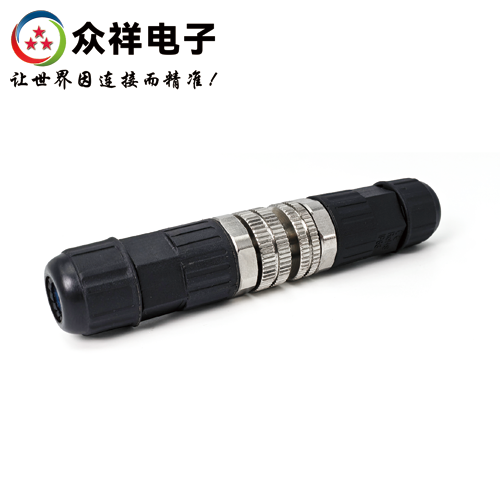

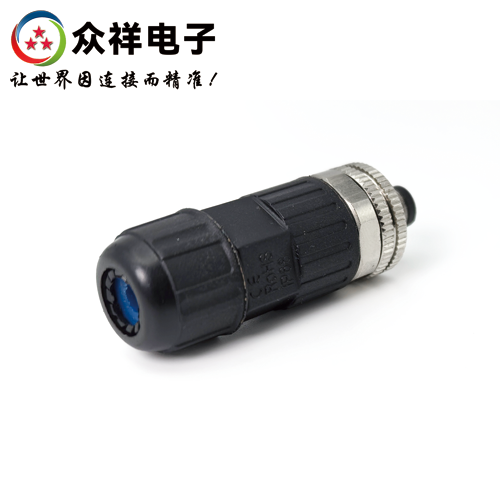

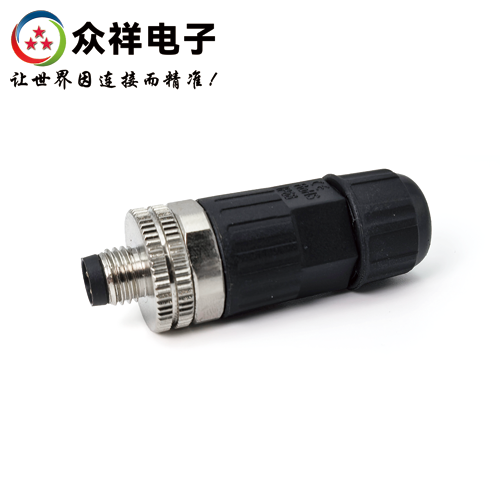

Application Environment: Indoor / Outdoor Ingress Protection: IP67 Number of Contacts: 2–8 contacts Mating Method: Thread twist locking Termination Method: Screw-clamp / Wire soldering / PCB soldering Description: M8 threaded connector, assembled type, plastic housing, straight male, screw-clamp termination

Contact us to obtain the connector technical datasheet.

Key Features

8mm opening dimension with compact size. Multi-contact options ranging from 2 to 8 contacts to meet diverse application requirements. High-density mounting design greatly saves installation space. Available in assembled, overmolded and panel mount versions. Termination options include screw-clamp, wire soldering and PCB soldering. When male and female connectors are mated, the ingress protection rating ranges from IP65 to IP67 depending on the version.

Components

Metal housing: Pure copper substrate with nickel plating, offering structural strength and corrosion resistance. Plastic housing: Engineering polyamide (PA), featuring excellent mechanical properties and good environmental resistance. Contacts (pins & sockets): Pure copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator insert: Injection-molded high-temperature engineering plastic with outstanding insulation performance.

Typical Application Fields

Industrial Automation: Connection for sensors, actuators and control units. Suits compact installation requirements of automated production lines and supports plug-and-play to improve wiring efficiency. Robotics Systems: Serves as input interface between end devices and control units to transmit motion signals, accommodating flexible wiring requirements for robot joints. Machine Vision: Signal transmission for industrial cameras and compact machine vision modules, matching the miniaturized design of equipment. New Energy Equipment: Data acquisition interfaces for photovoltaic and wind power systems, with weather resistance for outdoor environments. Medical & Pharmaceutical Equipment: Connection for miniature sensing components on pharmaceutical production equipment and internal signal transmission of portable medical instruments, complying with hygiene and reliability requirements.

Strategic Positioning

Backed by the company’s mature R&D, production and sales full-chain system, we provide professional and efficient customized one-stop electrical connection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robots, unmanned aerial vehicles and automotive manufacturing.
