General Model: M16 | Panel Mount Type | Metal Housing | Female Receptacle Application Environment: Indoor / Outdoor Protection Grade: IP65 Pin Count: 2~24 Pins Mating Method: Thread Twist Locking Termination Type: Screw-clamp / Wire Solder / PCB Solder

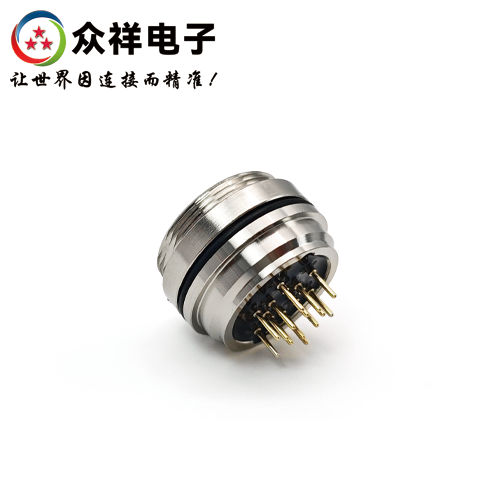

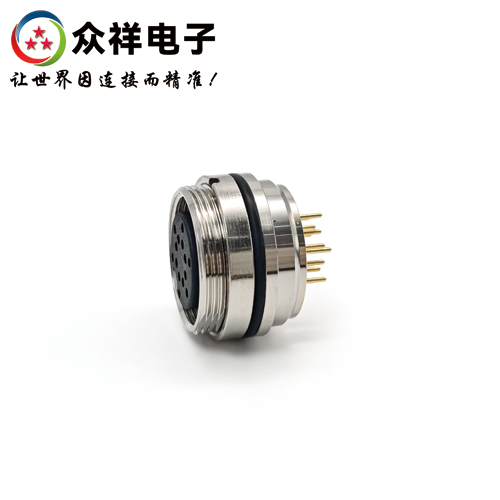

Description: M16 threaded connector, panel mount type, metal housing, female receptacle, screw-clamp termination.

Contact us to obtain the connector technical datasheet.

Key Features:

16mm panel cutout size, compact footprint; Pin count ranges from 2 to 17 pins, subject to coding type; High-density mounting design to greatly save installation space; Available versions: Assembly Type, Molded Type, Panel Mount Type; Termination options: Screw-clamp, Wire Solder, PCB Solder. When male and female connectors are fully mated, the protection rating reaches IP65~IP67 depending on version.

Component Composition:

Metal Housing: Copper base with nickel plating, delivering structural strength and excellent corrosion resistance. Plastic Housing: Engineering Polyamide (PA), featuring outstanding mechanical properties and good environmental tolerance. Pins / Sockets: Solid copper with gold plating to guarantee stable and reliable electrical conductivity. Insulator Insert: Molded from high-temperature resistant engineering plastic with superior insulation performance.

Typical Application Fields

Industrial Automation: Interconnection for sensors, actuators and control units. Suits compact installation requirements of automated production lines and supports plug-and-play to improve wiring efficiency. Robotic Systems: Serves as input interface between end equipment and control units for motion signal transmission, meeting flexible wiring demands for robot joints. Machine Vision: Signal transmission for industrial cameras and compact machine vision modules, compatible with miniaturized equipment design. New Energy Equipment: Data acquisition interface for photovoltaic and wind power systems, with weather resistance for outdoor environments. Medical & Pharmaceutical Equipment: Connection for miniature sensing components in pharmaceutical production machinery and internal signal transmission of portable medical instruments, complying with hygiene and reliability requirements.

Strategic Positioning:

Backed by our mature R&D, manufacturing and sales full-chain system, we provide professional, efficient customized one-stop electrical connection solutions targeting core industries including semiconductors, automation equipment, new energy devices, humanoid robots, quadruped robots, legged robots, drones and automotive manufacturing.
