General Model: M12 | Panel Mount | Female ReceptacleApplication Environment: Indoor / Outdoor Protection Class: IP65 Pin Count: 2~17 pins Mating Method: Thread twist locking Coding Option: Type A / Type B / Type D / Type X Termination: Screw-clamp / Crimp & Solder / Solder to PCB

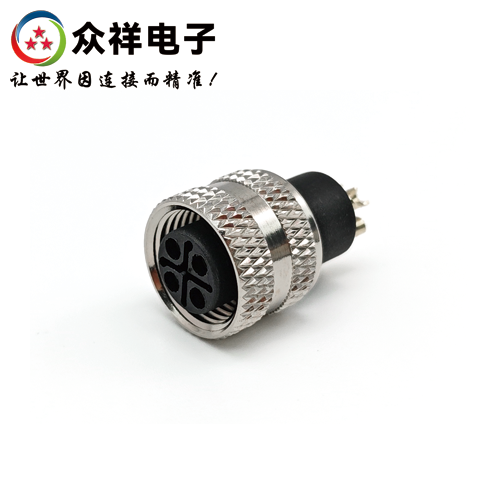

Description: M12 threaded connector, panel mount, metal housing, female receptacle, wire solder type.

Contact us to obtain the connector technical datasheet.

Key Features

12mm opening dimension with compact size. 2~17 contacts, available with different coding types. High-density mounting design greatly saves installation space. Coding options: Type A, Type B, Type D and Type X. Version options: assembled type, overmolded type and panel mount type. Termination options: screw-clamp, wire soldering and PCB soldering. When male and female connectors are mated, the ingress protection rating ranges from IP65 to IP67 depending on the version.

Components

Metal housing: Pure copper substrate with nickel plating, offering structural strength and corrosion resistance. Plastic housing: Engineering polyamide (PA), featuring excellent mechanical properties and good environmental resistance. Contacts (pins & sockets): Pure copper with gold plating to ensure stable and reliable electrical conductivity. Insulator insert: Injection-molded high-temperature engineering plastic with outstanding insulation performance.
