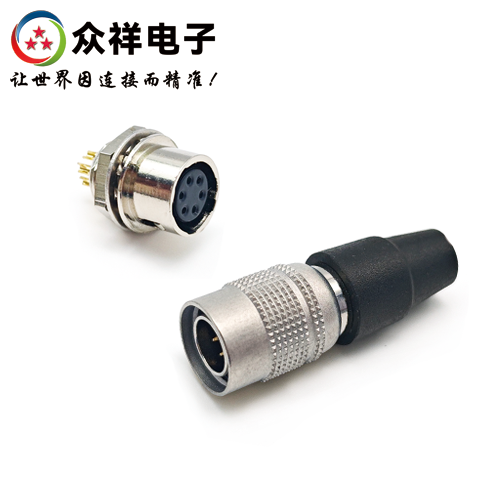

HR10 Shell Size 1 Housing

HR10 connector housing, Shell Size 1. Plugs with pins and receptacles with sockets, available in 4-core and 6-core options. Equipped with push-pull self-locking mechanism and five-key polarization design. Featuring compact structure, lightweight and durable build, and reliable connection as core advantages.

Online Consulting

File Download

Product Details

Related Parameters

Technical Data

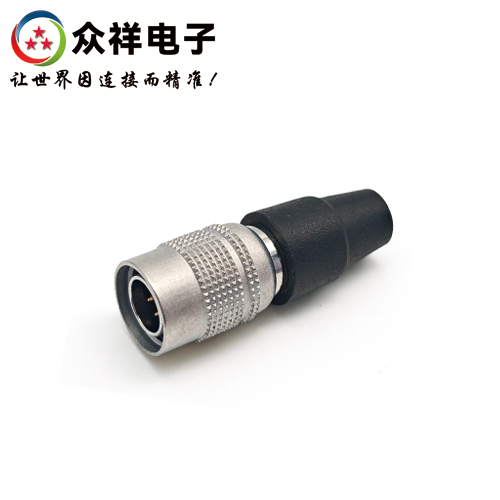

General Model: HR10 Series | Shell Size 1 | Plug with Pins Part Number: HR10A-7P-6P Available Contacts: 4-core / 6-core Application Environment: Indoor IP Rating: IP50 Mating Method: Push-pull Self-locking Termination: Soldering, Crimping or PCB Mounting

Description: Straight plug, cable clamp fixing, rubber boot.

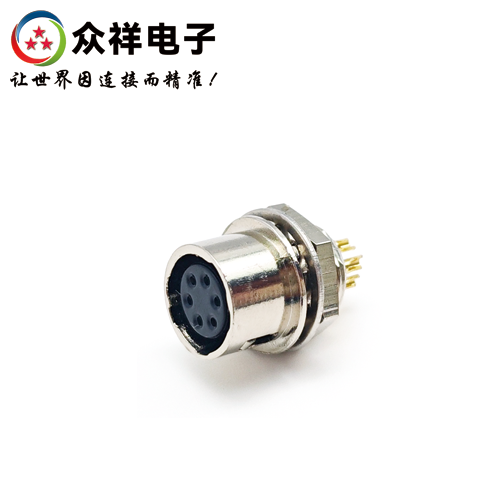

General Model: HR10 Series | Shell Size 1 | Receptacle with Sockets Part Number: HR10A-7R-6S Available Contacts: 4-core / 6-core Application Environment: Indoor IP Rating: IP50 Mating Method: Push-pull Self-locking Termination: Soldering, Crimping or PCB Mounting

Description: Fixed receptacle, nut mounting, for installation inside equipment cabinet.

Core Features

Easy Push-Pull Self-Locking: Push-pull coupling with anti-slip texture design for effortless mating and unmating. Audible click feedback confirms full engagement, and the self-locking mechanism resists vibration and prevents accidental disconnection.

Five-Key Anti-Misinsertion: Five-key polarization system delivers complete blind-mating protection. It enables precise alignment even when visibility is limited and safeguards the contacts from damage.

Miniaturized Design: Compact and lightweight construction saves equipment space. Ideal for portable devices and high-density mounting to support equipment miniaturization.

Premium Visual & Tactile Quality: Carefully engineered textured surface and multiple finishing options enhance high-end appearance and aesthetic quality of end devices.

High-Density Compatibility: Supports multi-contact layout. Gold-plated contacts paired with premium insulating materials ensure stable and durable electrical conductivity.

Component Composition

Shell Material: Copper alloy base with optional nickel plating or satin chrome finishing, balancing corrosion resistance and premium appearance. Pins / Sockets: Pure copper with gold plating to guarantee stable and reliable electrical performance. Insulator Insert: Injection-molded high-temperature engineering plastic with excellent insulation performance. Rear Boot: Rubber boot to effectively protect cables from external mechanical damage.

Typical Application Fields

Machine Vision: Signal interconnection for industrial cameras and machine vision systems, suited for compact installation requirements on automated production lines. Test & Measuring Instruments: Cable-to-panel or cable-to-cable connections for precision test and measurement instruments to maintain accurate signal transmission. Medical Equipment: Internal and external connections for portable patient monitors and diagnostic devices, meeting the lightweight and high-reliability requirements of medical equipment.

Strategic Positioning

Backed by our mature R&D, manufacturing and sales supply chain system, we provide professional, efficient customized one-stop electrical interconnection solutions for core industries including semiconductors, automation equipment, new energy equipment, humanoid robots, quadruped robot dogs, robot wolves, drones and automotive manufacturing.
